Introduction

The following repair guide will present a clear and illustrated process on how drivers can replace their engine air filter for a 2018 Toyota Corolla. An engine air filter replacement is required for cars to operate smoothly and extend their lifespan. Without proper replacements, vehicles may have restricted engine air flow. Built-up amounts of dust and debrief can cause an air and dirt mixture to fill your engine. Following this guide can prevent these issues from occurring.

This repair is not timely or financially costly.

Drivers should replace their engine filters every 15,000 to 30,000 miles depending on the environments driven in. Some signs that you may need an engine replacement are if the engine filter cannot pass light through when held up to the sun, the check engine light is flashing, or if your vehicle is using more fuel than it is putting out. Some tools required for this repair are the proper air filter for the car model, gloves, a face mask, and a clean rag. The proper air filter can be found in the owner's manual for your car.

The repair is easy for new beginners to learn. Ensure that you are carefully following along and double-checking your steps to successfully replace your car engine air filter.

  1. qExi4An6VWbAuRwb
    qExi4An6VWbAuRwb
    ejJUJrGMYZxh4sYS

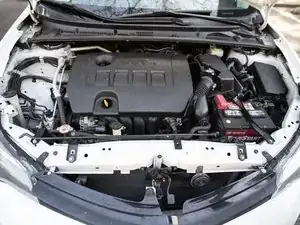

    • Park your Toyota corolla on a flat surface. Turn off engine. Remove keys from ignition.

    • Open the hood after the engine is cool.

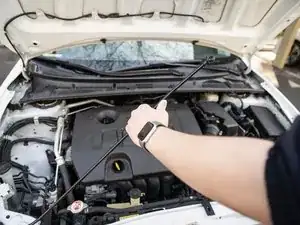

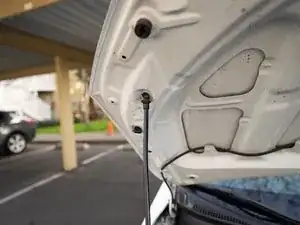

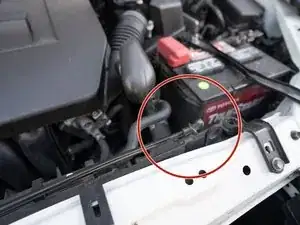

  2. cBQWZ6OAc2AQ3DBy
    cBQWZ6OAc2AQ3DBy
    vvHYt3oeaYSfjYB2
    OVcriKOVaemy4gsH
    • Lift and secure the hood.

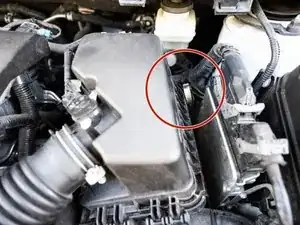

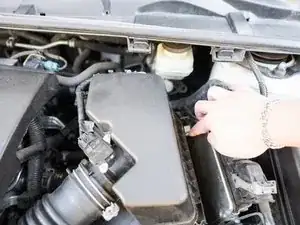

  3. VMfoePoCGRWfp1BS
    VMfoePoCGRWfp1BS
    nQHNVwZSQOWVgkKU
    fGtVYGN1pGHFrP1p

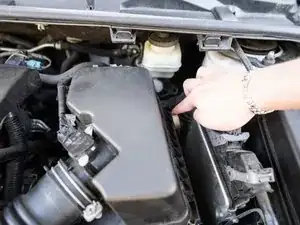

    • Unclip the housing clip to open the housing.

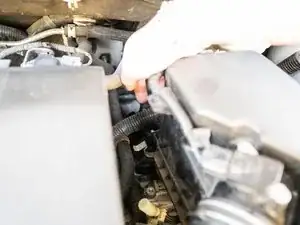

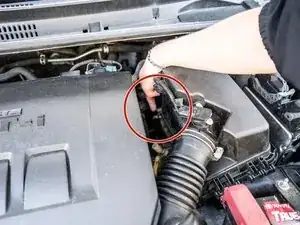

  4. daEIFCJSAfnAYciR
    daEIFCJSAfnAYciR
    IdPYLeZwpQs4rWJn
    c3PBeYeSKIteW3pI

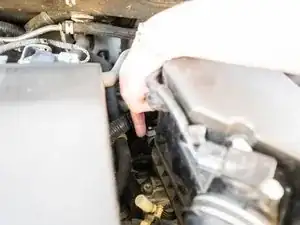

    • Unclip the housing's second clip on the other side of the housing.

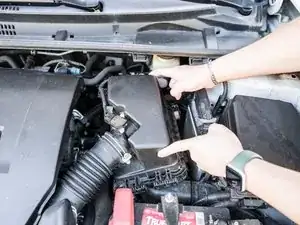

  5. CY1VVVuDa2VKHHGp
    CY1VVVuDa2VKHHGp
    IEAAhvbkCkkBiHC5

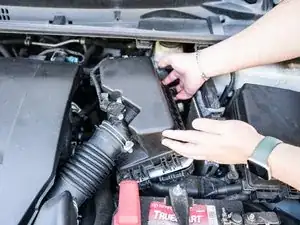

    • Lift the housing.

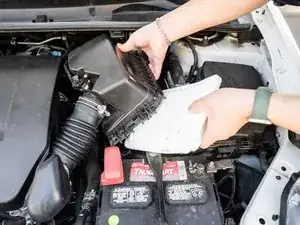

  6. On51VUKvBUQ2BISd
    On51VUKvBUQ2BISd
    RwvrIY31BT2sIkPe

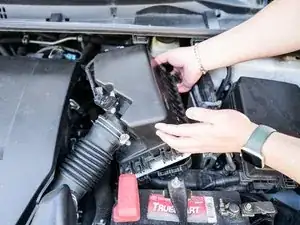

    • Remove the old air filter by gently taking the filter out from under the housing.

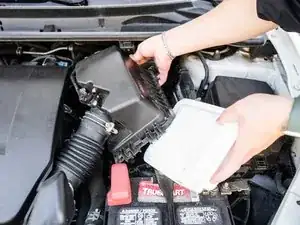

  7. 3IGIoWvncLRrcHOB
    3IGIoWvncLRrcHOB
    PSZYAiGFFSMjBVsR

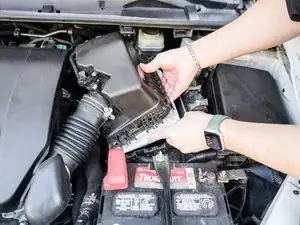

    • Install the new air filter by placing it into the housing.

    • Check to make sure it is properly oriented with the rubber rim facing up.

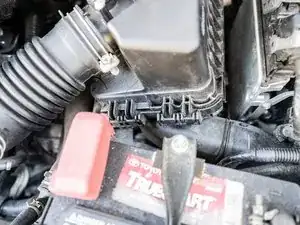

  8. 61UBFBElqymENVTI
    61UBFBElqymENVTI
    p6iZVOJQOidUZpYS

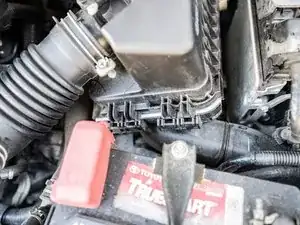

    • Close the housing.

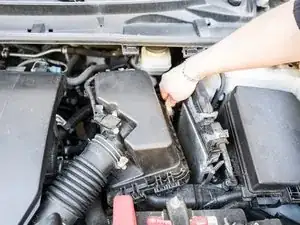

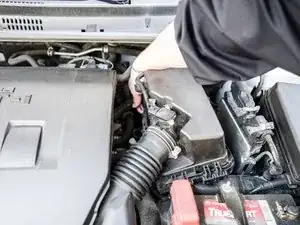

  9. dJHcFBnatWlxoZTy
    dJHcFBnatWlxoZTy
    AGDUaaF1Jw3FlvXN
    RU4rWLJ5trAUxLNq

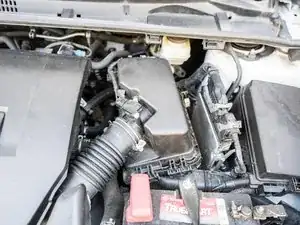

    • Resecure the clips on both sides of the housing.

Conclusion

Final Checks:

  • Check to ensure that the housing is clipped securely in its place.
  • Start your vehicle to ensure that it is running smoothly.
  • Check dashboard to ensure there is no warning light flashing.
