Introduction

Is your 2017 Toyota Corolla not getting the gas mileage it used to? Does it lack the power it once had? Maybe the problem lies within a very small and easy fix that can solve both problems, two birds with one stone as they say.

A car's engine mileage and power can suffer due to multiple complicated reasons, but some of the most common, despite how easy of a fix it is, is the engine's air filter. The air filter is what allows air to be fed into the engine which is sparked for ignition. If one's filter is too dirty and dusty, not only will the car lose power, but it will spend too much grasping for air, ensuring low mileage in the times to come.

Before using this guide, there are things to consider. First, ensure nothing else is faulty with your car engine with a quick car scanner, or borrow one from O'Riley/Autozone, and second check the car mileage. You should be replacing your engine's air filter every 50k miles. People go 120k miles without even glancing at it once, oh the horror!

Be wary of possible dust and filtered build up when replacing. It's a car engine, not nature's breeze.

Before beginning, place your car in park, engage the parking brake, and power off the ignition.

  1. UQAtPHJMU2alxFeB
    UQAtPHJMU2alxFeB
    RQQsBm3pLJYI2lRO
    bRCk421di5qe1Ui6
    • Caution: Ensure that the vehicle is off for at least two minutes and is parked before working.

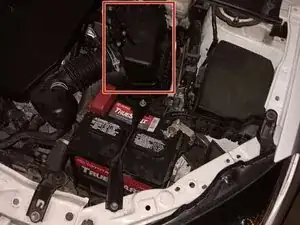

    • Pop the hood and locate the engine's air filter. It is the object circled in red.

  2. iOeEH2j6xLZaTDNx
    iOeEH2j6xLZaTDNx
    M3kgMc1shIGuBkt3

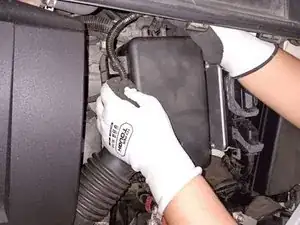

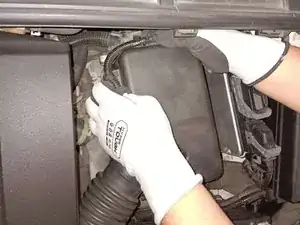

    • To unclip the air filter cover, you must first take off this tube, connected to the top.

  3. ZXy6ogVUtKTA3XhP
    ZXy6ogVUtKTA3XhP
    Nvh6DByAbHPX1wyu

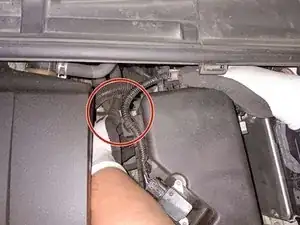

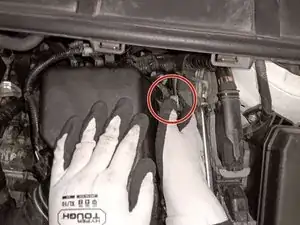

    • Undo the hinges at each side of the cover.

    • Put a little bit of pressure down and they should unclip easily.

  4. nLgfm5m6CQ5tQHbT
    nLgfm5m6CQ5tQHbT
    wCYEWR2EN2cFZhLR
    vok6NV3W2kd1kSrM

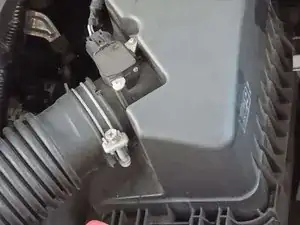

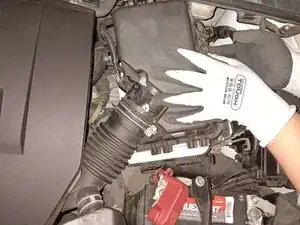

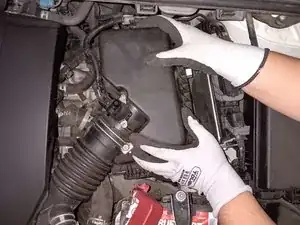

    • Shift the cover forward and it should come off. Have two hands on it, one at the front and the back to jimmy it out easier.

    • Do not worry about holding onto it after taking it off.

  5. LFJ5D1hioMPls2c1
    LFJ5D1hioMPls2c1
    leRJ2HodEBgiLRlm

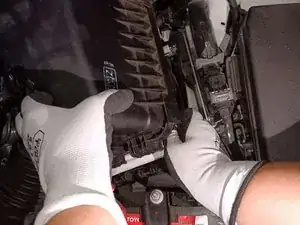

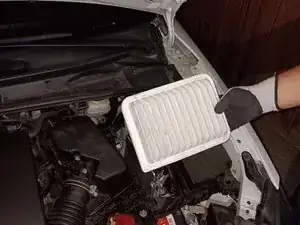

    • Keep the cover up enough to slide the air filter right out of the cover box.

  6. 2Fw2BfPorlPQ5XCo
    2Fw2BfPorlPQ5XCo
    4JMHWErVl642Wadd

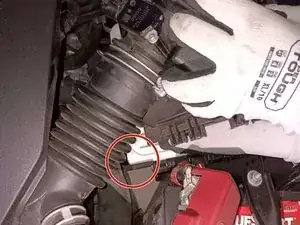

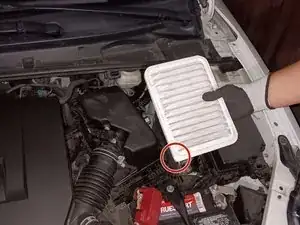

    • Insert the engine air filter you've acquired into the previous air filter's slot. It should fit like a glove once slotted properly.

    • Ensure that the marked sides align properly, or else it won't fit no matter which way you put it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
