Introduction

Engine air filters play an important role in maintaining engine performance and health. An obstructed or dirty air filter may cause reduced engine performance and fuel efficiency. Regular maintenance is necessary for cars to increase their usability and longevity.

On average it is recommended that an engine air filter be changed every two to three years in normal driving conditions. However, driving on more dusty roads will require it to be changed every year. This guide will serve as a tool for 2014 Hyundai Santa Fe Sport owners to help them complete this simple maintenance task and be able to increase the lifespan of their vehicle.

As a safety precaution, ensure that the vehicle is turned off, in park, and the emergency brake is engaged before beginning this repair. If you have been driving just before this procedure, make sure that your engine has cooled down before working under the hood of your car to avoid burns.

  1. coGPFSVMGfJPFSYc
    coGPFSVMGfJPFSYc
    R4ca2ggufvX1QSAi
    sbrJN6muJOYO4NGq

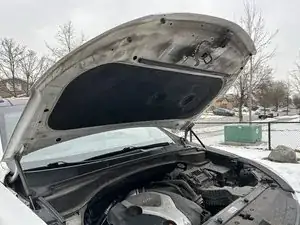

    • Make sure the car is parked and turned off.

    • Pull the hood release lever at the bottom left of the driver side footwell to open the car hood.

    • Press the black notch located in the middle under the hood to unlock it.

    • Lift the hood all the way up with both hands.

  2. Aq5WQieCnUKIbLEO
    Aq5WQieCnUKIbLEO
    XnnBoM62DGVT5baY
    • Make sure the car hood stays up and is stable prior to proceeding.

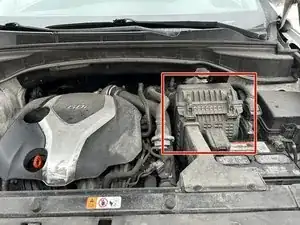

    • Locate air filter housing.

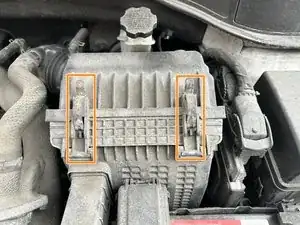

    • Locate the latches to access the air filter.

  3. OtdgnvOUDZRFfKDK
    OtdgnvOUDZRFfKDK
    AnEdIfwG2DPboWWg

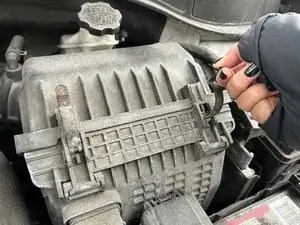

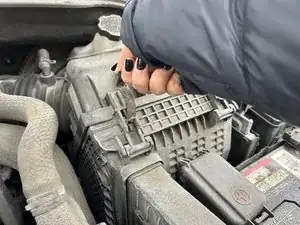

    • Hold the short notch on top of the latch and pull it towards yourself to unlock the air filter housing.

  4. jsrmhytFaLIqkbLU
    jsrmhytFaLIqkbLU
    hqjfoJc1FNKGpeD4

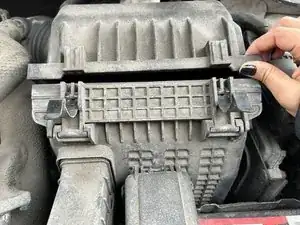

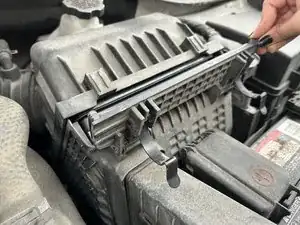

    • Gently lift the rear portion of the air filter housing and push it away from you to create a small gap.

    • Use the gap to open the small front flap.

    • You should be able to see the engine air filter.

  5. uxPkHT6YeKZFqnYd
    uxPkHT6YeKZFqnYd
    DVWAWJoBSwIayUYP
    gV25WlIDxXdcZwKr

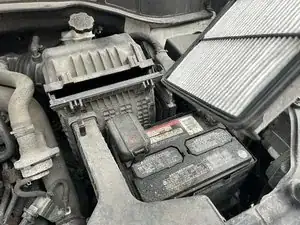

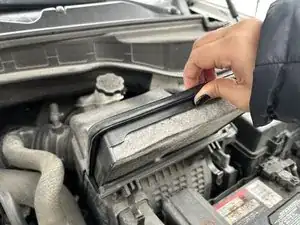

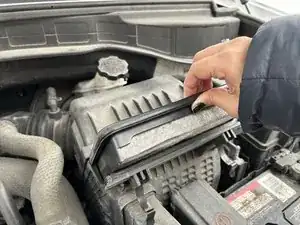

    • Reach in and pull out old air filter.

    • Leave the air filter housing open.

  6. lHF3hO6KBXHRcZae
    lHF3hO6KBXHRcZae
    APPSPheCiAKFXb6P

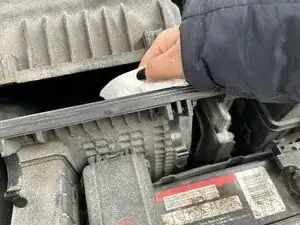

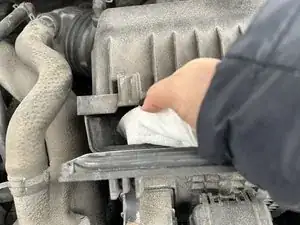

    • Do NOT reach too far into the air filter housing to clean it.

    • Use a dry paper towel or rag and drag it from one end of the air filter housing to the other to clear out any dust.

  7. nIntWQZWgYqZxHXd
    nIntWQZWgYqZxHXd
    sLBuHxgWcO2UTX2L
    4SDErElVSHNvcBtl

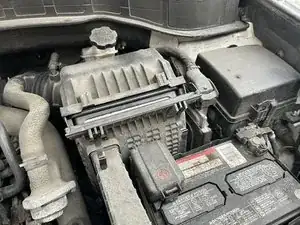

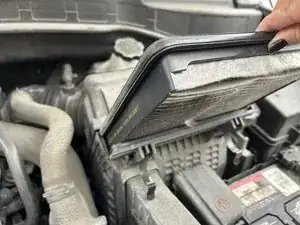

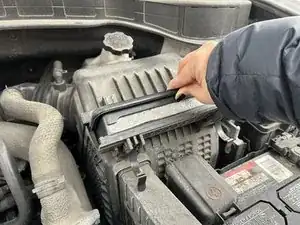

    • Insert the new air filter into the housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
