Introduction

This guide demonstrates how to replace an Air Intake for 2014 Buick Encore. An air filter of the car is used to catch dirt or debris to have a clean air flow to the engine. A clean filter increases the lifespan and reliability of an engine. Replacing an air filter in the air intake regularly is very important to prevent inefficiency and maintain the car's performance. A clean air filter also provides for better fuel economy.

The part used to replace the air filter is: STP SA11501.

  1. 4rvW2DLDptXLj4fg
    4rvW2DLDptXLj4fg
    KqYEDPYcwNdbCwAh
    UUh5WiQZMiAqnaaZ
    • Make sure that the vehicle is turned off before proceeding.

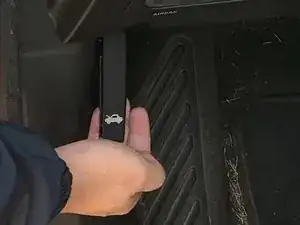

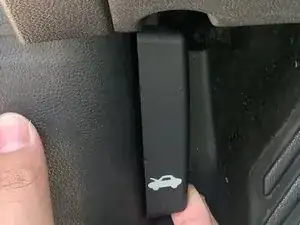

    • Pull the hood release latch under the steering wheel on driver's side.

  2. yEUNUKURVPJki2tu
    yEUNUKURVPJki2tu
    WykhTKQOmpQ6yCEn
    • Push the hood latch with your thumb of your right hand.

    • Lift the hood with your left hand to open the hood.

  3. JwJEqGYu5JAnvFQb
    JwJEqGYu5JAnvFQb
    VahwCK1PJ16IS3Ug
    WsFwvbMXAuQQPgr2

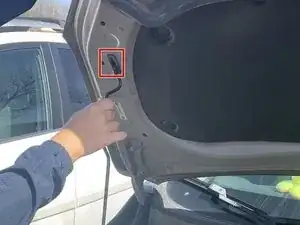

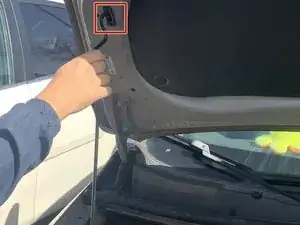

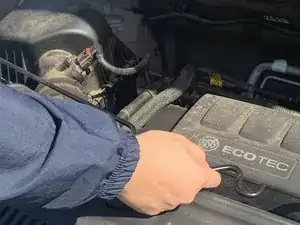

    • Place the hood prop to the prop hole to secure the hood from falling.

  4. CyCgZvBSigD3FakV
    CyCgZvBSigD3FakV
    MiybibbhuRkTdPVF

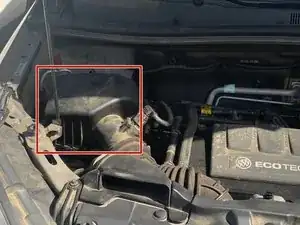

    • Locate the air filter.

  5. QpcIGSMtckrskPMA
    QpcIGSMtckrskPMA
    tHvCA2bqxLbdAdT3
    3UXEtZROriamTVsH

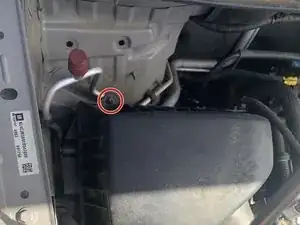

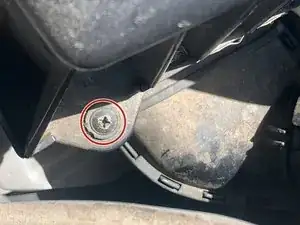

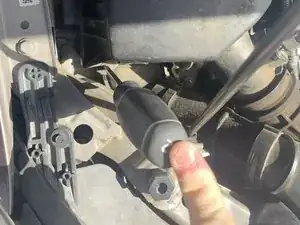

    • Remove the two 5 mm screws from the air filter cover with a Phillips #2 Screwdriver.

  6. iphyvSWOTR2TMACj
    iphyvSWOTR2TMACj
    iUsnAEPLdFNRYCib

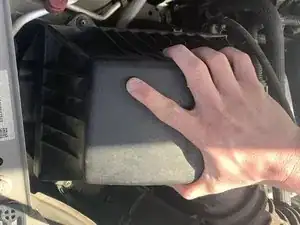

    • Pull the air filter cover off.

  7. pbcsHEnfGCGm6t1E
    pbcsHEnfGCGm6t1E
    AfKrW42il5tMGrMZ
    nPAIJX1mnHeOuJ2L

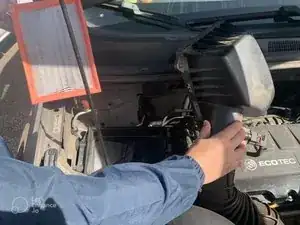

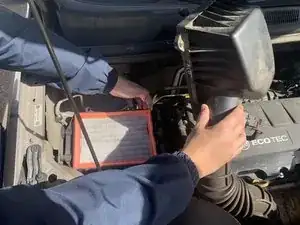

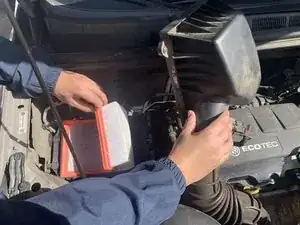

    • Remove the old air filter.

  8. CehYybWoUXgOtsjC
    CehYybWoUXgOtsjC
    fXig4MbFOkaTJp1y
    5KH6SPFAiAjHk1MW

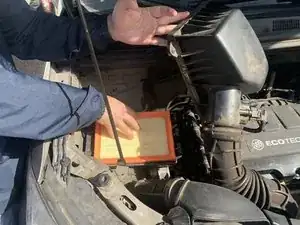

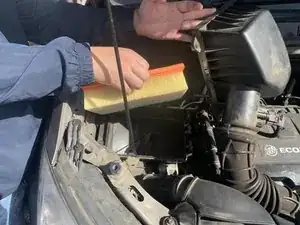

    • Place the new air filter in the filter box.

  9. HHPDlOWnQ55Aj3Zu
    HHPDlOWnQ55Aj3Zu
    xOPl2oekQBDJWADP

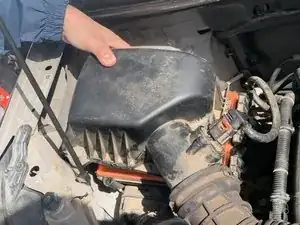

    • Place the cover back to original place.

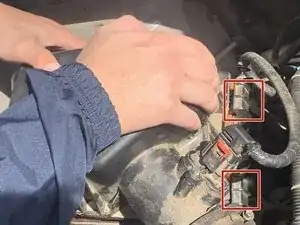

    • Make sure the hinges on the right side secure the cover.

  10. d1nZLblQnAmjoJAs
    • Insert the two 5 mm screws, and tighten them with a Phillips #2 Screwdriver.

  11. 6ARTNGbeUIYKknb2
    6ARTNGbeUIYKknb2
    xoSXKDF1TbcEcVDv
    k2SHjP6ofpkNaeHv

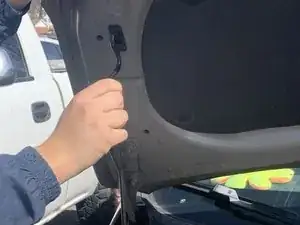

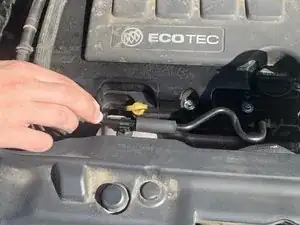

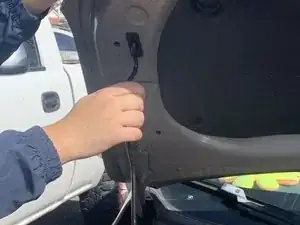

    • Remove the hood prop from the hole.

    • Secure the hood prop with the hood prop clip.

    • Close the hood.

Conclusion

To reassemble your device, follow these instructions in reverse order.
