Replacement Guides

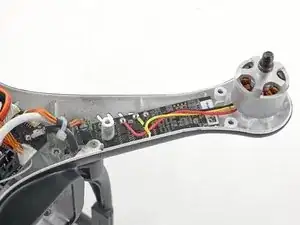

Motor

Motor

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Troubleshooting

Background

The DJI Phantom 2 Vision is a drone made by DJI in 2013. The model number is PV330. It was a part of the release of the Phantom 2 Series products which also included the DJI Phantom 2 and DJI Phantom 2 Vision+. It can connect to your smartphone, IOS or Android, through the DJI Vision App with WIFI. It is piloted with a remote control by the App. It has a camera mounted onto a swiveling gimbal that can produces HD quality video at different angles.

The DJI Phantom 2 Vision is mainly used for filming video at medium distances. Controls are described by users as easy to learn. It has a maximum operating distance of 300m. It does have a smart battery, which for the 2013 had a good flight time of 20-25 minutes per battery. Most malfunctions reported are related to keeping a signal consistently connected to the drone, but this should be prevented on the app by setting the maximum distance your drone can fly.

DJI has ended its support for the DJI Phantom 2 Vision on September of 2022.

Identification

The DJI Phantom 2 Has a quad armed body, with a mounted camera with swiveling gimbal on the bottom of the center. large port for battery on the back of the device. White primary color with red stripes on front arms. White camera with silver trim. Model number can be found on the bottom of the drone. It weighs 2.557 pounds or 1160g.

Technical Specifications

Transmitter:

  • Operating Frequency: 5.728GHz－5.8GHz
  • Communication Distance: CE: 300m; FCC: 500m
  • Receiver Sensitivity (1%PER): -93dBm
  • Transmitter Power: CE: 25mw; FCC: 125mw
  • Working Voltage: 80 mA@6V
  • Battery: 4 AA Batteries

Range Extender:

  • Operating Frequency: 2412-2462 MHz
  • Communication Distance 300m
  • Transmitter Power:<=17dBm
  • Power Consumption: 1.5W

Aircraft:

  • Battery: 5200mAh LiPo
  • Weight (Battery & Propellers included): 1160g
  • Hover Accuracy (Ready to Fly): Vertical: 0.8m; Horizontal: 2.5m
  • Max Yaw Angular Velocity: 200°/s
  • Max Tilt Angle: 35°
  • Max Ascent / Descent Speed: Ascent: 6m/s; Descent: 2m/s
  • Max Flight Speed: 15m/s (Not Recommended)
  • Diagonal Length: 350mmTilting Range of Gimbal: 0°-60°

Camera:

  • Resolution: 14 Megapixels
  • FOV: 120°/ 110°/ 85°
  • Sensor size: 1/2.3"
  • Functionality:
    • Support of multi-capture, continuous capture, and timed capture
    • Support of HD Recording (1080/p30 or 1080/60i)
    • Supports of both RAW and JPEG picture format
